Amplifier FU-A 14000

AZTEC Power Amplifier FU-A 14000


Expand/Collapse All

Feature

General
- Number of amplifier channels : 2
- Peak total output all channels driven : 14000 W
- Peak output voltage per channel : 195 V
- Max output current per channel : 90 A peak
- Max output power (all channels driven)
  2 ohms : 7000 W
  4 ohms : 4400 W
  8 ohms : 2350 W
  16 ohms : 1200 W
- Max output power bridged
  2 ohms : Not recommended
  4 ohms : 14000 W
  8 ohms : 8800 W
  16 ohms : 4700 W

Spesification

General
- Number of amplifier channels : 2
- Peak total output all channels driven : 14000 W
- Peak output voltage per channel : 195 V
- Max output current per channel : 90 A peak
- Max output power (all channels driven)
  2 ohms : 7000 W
  4 ohms : 4400 W
  8 ohms : 2350 W
  16 ohms : 1200 W
- Max output power bridged
  2 ohms : Not recommended
  4 ohms : 14000 W
  8 ohms : 8800 W
  16 ohms : 4700 W
Performance
- THD 20 Hz - 20 kHz at 1 W : <0.1%
- THD at 1 kHz and 1 dB below clipping : <0.05%
- Signal to Noise Ratio : >112 dBA
- Channel separation (Crosstalk) at 1 kHz : >70 dB
- Input impedance : 20 kOhm
- Common Mode Rejection (CMR) : >54 dB, 20 Hz - 20 kHz
- Gain, Sensitivity and Limiters
- VPL, selectable per ch : 195, 170, 140, 116, 100, 80, 66, 54 V
- VPL, when bridged 2 : 390, 340, 280, 232, 200, 160, 132, 108 V
- Voltage Peak Limiter mode (per ch.) : Hard / Soft
- Amplifier gain selectable (all channels) – rear-panel switches : 23, 26, 29, 32, 35, 38, 41, 44 dB
- Default gain : 38 dB
- Level adjustment (per channel) : Front-panel potentiometer, 31 position detented from -inf to

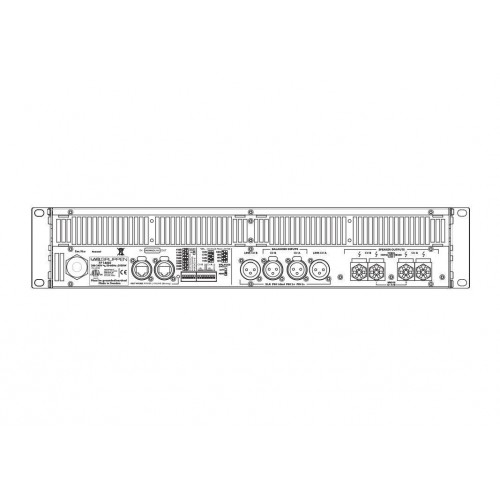

Connectors and Buttons
- Input connectors (per ch.) : 3-pin XLR, electronically balanced
- Output connectors (per ch.) : Neutrik speakON / binding post
- Output bridge mode : A+B - Ch. A is signal input source. A+B, C+D - Ch.’s A and C are input source
- NomadLink network : On board, 2 x RJ45 connectors IN and OUT
- Intelligent fans (on/off) : Yes, depending on presence of output signal
- Power on/off and Remote enable on/off : Individual switches on front-panel
- Cooling : Dual fan, front to rear airflow, no filter required, temperature controlled speed
Front-panel user interface
- Common : NomadLink Network; Power Average Limiter (PAL)4; Power on
- Per channel : Signal present / High-impedance; -10 dB and -4 dB output signal;Voltage Peak Limiter (VPL); - Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute
Power
- Operating voltage, 230 V / 115 V nominal : 130-265 V / 65 -135 V
- Minimum power-up voltage, 230 V / 115 V : 171 V / 85 V
- Power Average Limiter (PAL) : Yes
- Soft-start / Inrush Current Draw : Yes / max. 5 A
- Mains connector : 230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock
Dimensions
- Dimensions : W: 483 mm (19”), H: 88 mm (2 U), D: 396 mm (15.6”)
Weight
- Weight : 12 kg (26.4 lbs)
