Product

All Product - Lighting - Moving Head - AZTEC FOLLOW SPOT 330W 15 R DISCHARGE LAMP

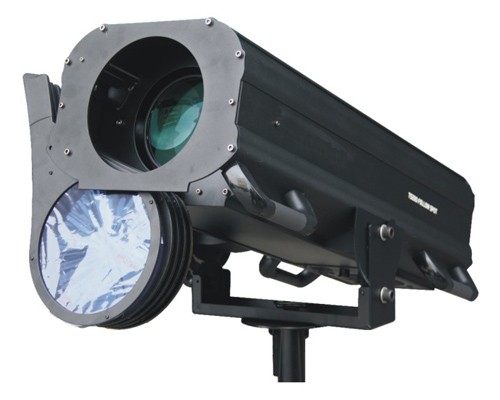

AZTEC FOLLOW SPOT 330W 15 R DISCHARGE LAMP

Fitted with a High precision optical lens and an Osram SIRIUS HRI 330W light source, the AZTEC Follow Spot 330 offers brilliant intensity for all lighting applications. The total system provides a high lumen output brighter than a traditional 1200W fixture. Ensuring low energy consumption and maintenance costs. The AZTEC 330 follow spot is packed with features such as: Focus and dimmer (both linear adjustable); iris and linear beam angle zoom 5° to 10°. The total system provides a high lumen output with a color temperature of 7,500K, which is brighter than a traditional 1200W follow spot.

Expand/Collapse All

Feature

Fixture control
- Full - manual
- Dimmer 0 - 100% liner adjustment
- Iris 5 - 100% liner adjustment
- Beam light cutting 0 - 100% up and down adjustment
- CTO color temperature correction
- 0 - 100% soft light evenly spread
- replaceable gobo
Other feature
- Automatically adjustment of fan speed , when the follow spot in full shutter condition , the lamp would lower 60W power automatically


Spesification

Technical Parameters
- Voltage : AC 100 - 240V / 50 - 60Hz
- Max Power Consumption : 500 Watt
- Ballast : E-ballast
- Lamp : Osram Sirius HRI 330W lamp
- Lamp color temperature : 7500K
- Luminous flux : 17,000 LM
- Lamp lifespan : 1,500 hours
- Optical system : 3 sets lens , reflector cup
- Zoom / Beam angle : 4º - 12º Manual Zoom
- Focus : High-Definition adjustment with optical focus
- Color : Color changer with 5 color , different color papers can be changed at random
- Color filter temperature : 3200K
- Gobo : replaceable gobo
- Pan / Tilt : Pan 360o , Tilt 90o
- Body : Aluminum alloy structure
- 4 operating handle on 2 sides and back side of the body
- Standard : In conformity with GB7000.1-2007 , GB7000.217-2008 and GB17625.1-2003 directives
- Certification IP Rating : IP-20
- Fixture Size ( LxWxH ) : 866x400x404 mm
- Nett. Weight : 22.5 Kg
- Fly Case size ( LxWxH ) : 1225x625x545 mm
- Fly Case weight : 9.18 Kg

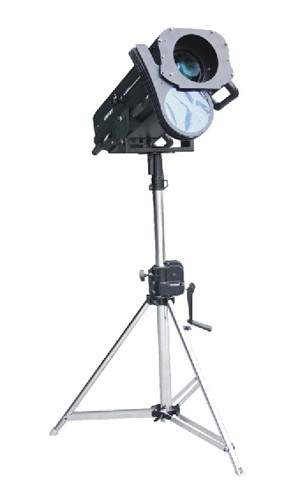

- Accessories : Tripod Included.
