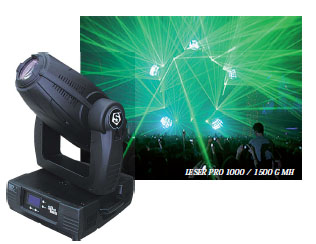

Laser Pro - 150-600 The Aztec Laser Pro 150-600 G MH / 1000-1500 G MH / 400-1500 RGB MH can make a lot of variation and full color. Feature* Laser Pro - 150 - 600 G MH
- Aircooled laser diode (TEC) ; analogue modulation - Green : ca. 150 - 600mW / 532nm - Laser class : 3b - Scanner system : very fast galvo system with exellent projection quality - Basic patterns : 256 (layers, tunnels, fences, waves) - Power consumption : 105W * Laser Pro - 1000 / 1500 G MH - Aircooled laser diode (TEC) ; analogue modulation - Green : guaranteed : 750 / 1250mW, typical : 1000/1500mW/532nm - Laser class : 4 - Laser class : 3b bzw. 4 - Scanner system : very fast galvo system - Basic patterns : 160 (layers, tunnels, fences, waves) - Accessories : Flightcase, power cable, mountings, manual, remote interlock, key - Power consumption : 200W * Laser Pro - 400 /1500 RGB MH - Output guaranteed : 350 -1250mW, typical : 400 - 1500mW RGB (white) TTL Modulation bzw. Analogue modulation - 60-350mW/532nm (green), 60 - 350mW/473nm (blue), 300-650mW/635nm (red) - Laser class : 3b bzw. 4 - Scanner system : very fast galvo system - Basic patterns : 256 (layers, tunnels, fences, waves) - Accessories : power cable, mountings, manual, remote interlock, key - Power consumption : 105W bzw. 200W * Beam properties : 3 mm / 1mrad * Deflection angle : max. 600 optical * Scanspeed : max. 50.000pps * Control modes : ILDA, DMX 512, automatic mode * ILDA : 25pin ILDA Standard Sub-D shaped 25pin connector * DMX 512 : 20 channels * Operating range : Pan : 5300 Tilt : 2800 * Resolution : 16 bit * Laser safety : achieve highest safety standards with 4 integrated safety circuits * Digital display at the back * Power supply : 110 ~ 240 AC 50/60 Hz SpesificationLaser Pro - 150 - 600 G MH * Meassurements : 459 x 479 x 639 mm (L x W X H) * Weight : 30 Kg Laser Pro - 1000 / 1500 G MH * Meassurements : 539 x 492 x 843 mm (L x W X H) * Weight : 40 Kg Laser Pro - 400 /1500 RGB MH * Meassurements : 539 x 492 x 834 mm (L x W X H) * Weight : 30 Kg |
