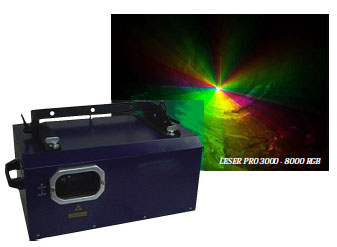

Laser Pro 600-1500/3000-8000 RGB

The Aztec Pro Laser 600-1500/3000-8000 RGB can make a lot of variation and full color.

Expand/Collapse All

Feature

* Laser Pro 600 - 1500 RGB
- Output : guaranteed : 500 - 1250mW ;
typical : 600 - 1500mW RGB (white)
- 150 - 350mW / 532nm (green), 100 - 350mW/473nm
(blue), 250 - 650mW/635nm (red)
- Basic patterns : 256 (layers, tunnels, fences, waves)
- Power consumption : 90W

* Laser Pro 3000 - 8000 RGB
- Output : guaranteed : 2500 - 7000mW ;
typical : 3000 - 8000mW RGB (white)
- 750 - 2000mW / 532nm (green), 950 - 2500mW/473nm
(blue), 1300 - 3500mW/650nm (red)
- Basic patterns : 160 (layers, tunnels, fences) ; twin gobo
projection
- Digital display at the back
- Power consumption : 350W
* Laser class : 4
* Beam properties : 3 mm / 1mrad
* Deflection angle : max. 600 optical
* Galvo system : max. 50.000pps scanspeed
* Control modes : ILDA, DMX 512
* ILDA : 25pin ILDA Standard Sub-D shaped 25pin connector
* DMX 512 : 16 channels
* Digital display at the back
* Effects channels : Rotation, bounch, size, color, slowdraw,
stretch & rolling.
* Accessories : power cables, mountings, manual, remote
interlock, key, delivery in Flightcase
* Power supply : 110 ~ 240 AC 50/60 Hz

Spesification

* Laser Pro 600 - 1500 RGB
- Meassurements : 670 x 380 x 270 mm (L x W X H)
- Weight : 20 Kg
* Laser Pro 3000 - 8000 RGB
- Meassurements : 670 x 370 x 420 mm (L x W X H)
- Weight : 30 Kg
